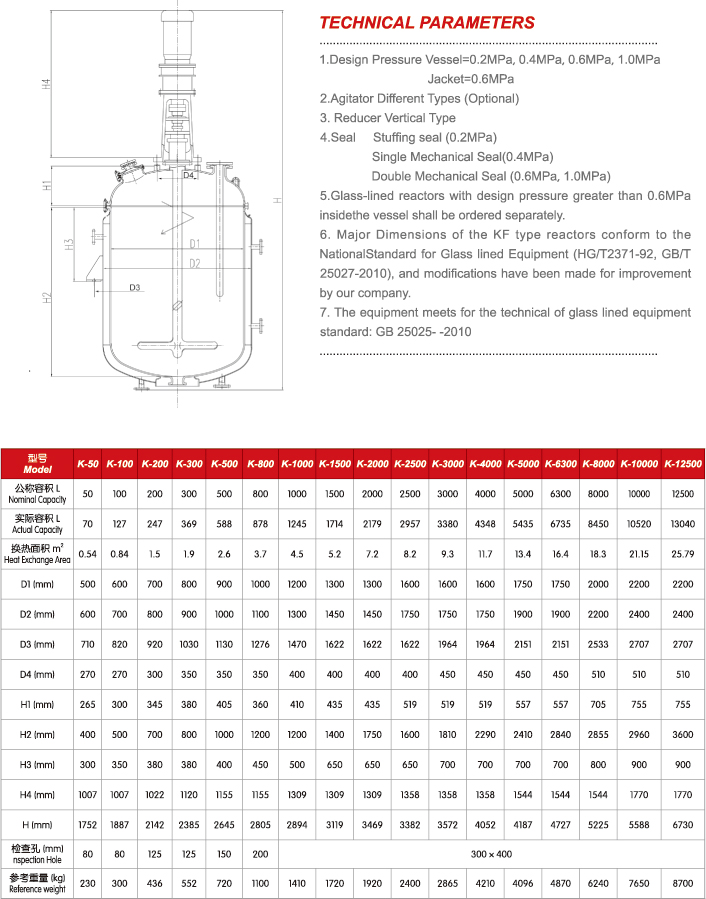

PARAMETERS: 1. Design Pressure: Vessel: 0.2Mpa, 0.4Mpa, 0.6Mpa, 1.0Mpa, Jacket: 0.6Mpa; 2. Agitator/Stirrer: Optional; 3.Reducer: Vertical Type; 4. Shaft Seal: Stuffing Seal (0.2 Mpa), Single Type Mechanical Seal (0.4 Mpa), Double Type Mechanical Seal (0.6 Mpa, 1.0 Mpa); 5. Specialized order by vessel pressure above 0.6Mpa; 6. The dimension of AE series (63 to 6300L)/K series (50 to 12500L)reactor is design, manufacture and improve base on standard DIN 28136 or GB/T 25025-2010, GB/T 25027-2010, HG/T 2371-2003 or customized.
